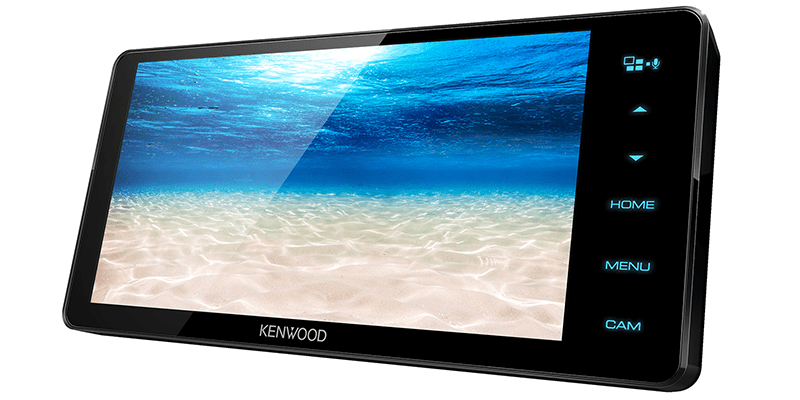

Monitor Section :
* Picture size ?6.95 inches(diagonal) wide
* W x H ?156.6 mm x 81.6 mm
* Display system ?TN LCD panel
* Drive system ?TFT active matrix system
* Number of pixels ?1,152,000800 ?H x 480V x RGB
* Effective pixels ?99.99%
* Pixel arrangement ?RGB striped arrangement
* Back lighting ?LED
DVD Section :
* D/A Converter ?24 / 32Bit
* Audio Decoder ?Linear PCM ?Dolby Audio ?MP3 / WMA / AAC / WAV / FLAC / Vorbis
* Video Decoder ?MPEG1/2,MPEG4 / WMV / H.264 / MKV
* Wow & Flutter ?Below Measurable Limit
* Frequency response ? 96k Sampling20 - 44,000 Hz
* 48k Sampling20 - 22,000 Hz
* 44.1k Sampling20 - 20,000 Hz
* Total harmonic distortion ?1kHz0.010%
* Signal to Noise ratio ?90.5dB (DVD-Video 96k)
* Dynamic range ?89dB (DVD-Video 96k)
* DISC Format ?DVD-Video / VIDEO-CD / CD-DA
* Quantifying bit number ?16 / 20 / 24bit
USB I/F Section :
* USB Standard ?USB2.0 High Speed
* File System ?FAT 16/32, exFAT, NTFS
* Maximum Power Supply Current ?DC5V=1.5A
* D/A Converter ?24/32Bit
* Audio Decoder ?MP3 / WMA / AAC / WAV / FLAC / Vorbis
* Video Decoder ?MPEG1/2,MPEG4 / WMV / H.264 / MKV
Bluetooth Section :
* Technology ?Bluetooth Ver5.0
* Frequency ?2.402 – 2.480 GHz
* RF Output Power (E.I.R.P.) ?+4dBm (MAX), Power Class 2
* Maximum Communication range ?Line of sight approx.10m(32.8ft)
* Audio Codec ?SBC / AAC
* Multi Profile Support ?Multi Profile
* Profile ?HFP (V1.7) (Hands Free Profile) ?SPP (Serial Port Profile) ??A2DP (Advanced Audio Distribution Profile) ?AVRCP (V1.6) (Audio/Video Remote Control Profile) ?PBAP (Phonebook Access Profile)
DSP Section :
* Graphics equalizer ?
* BAND ?13 Band
* frequency (Hz) (BAND1-13) ?62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
* Gain ?-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
* 2Way X'Over
* HIGH PASS FILTER frequency ?Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
* SLOPE ?-6/-12/-18/-24[dB/Oct.]
* LOW PASS FILTER frequency ?30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
* SLOPE ?-6/-12/-18/-24[dB/Oct.]
* 3Way X'Over ?
* HIGH PASS FILTER frequency ?250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
* SLOPE ?-12/-18/-24[dB/Oct.]
* Band PASS FILTER frequencyThrough/50/60/70/80/90/100/120/150/180/220/250/300[Hz] ?250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
* SLOPE ?-12/-18/-24[dB/Oct.]
* LOW PASS FILTER frequency ?30/40/50/60/70/80/90/100/120/150/Through[Hz]
* SLOPE ?-12/-18/-24[dB/Oct.]
* Position
* Front / Rear /Subwoofer Delay ?0 - 6.1m (0.01m Step)
* Gain ?-8 to 0dB
* Subwoofer ? Level-50 to +10dB
FM :
* Frequency Range ?87.5MHz - 108.0MHz
* (Frequency step) ?(50kHz)
* Usable sensitivity ?9.3dBfS/N30dB0.8?V/75?
* Quieting sensitivity ?15.2dBf
* DIN S/N ?46dB1.6?V / 75Ohms
* Frequency response ?30Hz - 15kHz
* (±3.0dB)
* S/N (dB) ?65dB (MONO)
* Selectivity ?Over 80dB (±400kHz)
* Stereo separation ?45dB (1kHz)
AM :
* Frequency Range ?531kHz - 1611kHz
* (Frequency step) ?(9kHz)
* Usable sensitivity ?25?V

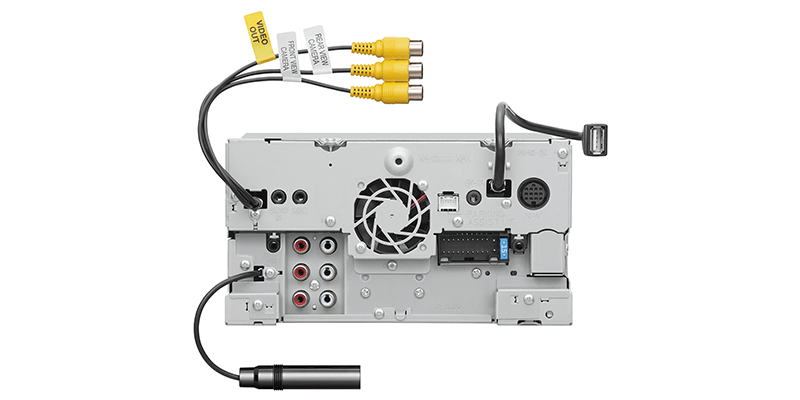

Video :
* Color system of external video input ?NTSC/PAL
* External video input level (Mini jacks) ?1 Vp-p / 75 Ohms
* External audio max input level (Mini jacks) ?2 V / 25 k
* OhmsVideo Input level (RCA jacks) ?1 Vp-p / 75 Ohms
* Video Output level (RCA jacks) ?1 Vp-p / 75 Ohms
* Audio Output level (Mini jacks) ?0.9 V / 10 kOhms
* Analog RGB input-
Audio :
* Maximum Power Output (Front&Rear) ?50Wx4
* Typical Power Output (Front&Rear) ?Full Bandwidth Power ?(at less than 1%THD) ?22Wx4
* Output frequency band ?20 - 88,000Hz
* Preout level (V) ?5V / 10kOhms
* Preout impedance (?) ?=< 300 Ohms
* Speaker Impedance (?) ?4-8 Ohms
General:
* Operating voltage ?12V DC Car Battery
* Installation Dimensions WxHxD ?178mm x 100mm x 160mm
* Weight? Main unit ?2.4 kg
